Systems Calls



Protecting the System

How can OS prevent user applications from harming the system?

What if an application accesses disk drive directly?

What if an application overrides interrupt handlers for keyboard?

What if an application executes the HLT instruction?



Systems Calls



Protecting the System

How can OS prevent user applications from harming the system?

What if an application accesses disk drive directly?

What if an application overrides interrupt handlers for keyboard?

What if an application executes the HLT instruction?



: Os가 시스템을 보호하는 방법에 대한 이야기

시스템에 해를 끼칠 수 있는 application : critical part 접근하려고 함

-> 막아야 하니까 cpu에서 제공하는 dual mode operation



Protecting the System

CPU operates in “user mode” or “kernel mode

Allows OS to protect itself and other system components

 Separate critical things from general things

Mode bit (provided by hardware) allows to distinguish on which mode the

system is running (0이면 kernel mode, 1이면 user mode)

All privileged instructions (critical part를 접근하는 명령들, 권한이 굉장히 높음)

are only executable in the kernel mode

 E.g., HLT in x86



Modern CPUs support more than two

modes (i.e., multi-mode operations)

i.e. virtual machine manager (VMM)

mode for guest VMs

VMs should be limited to its space for

memory access

(b) 현대의 컴퓨터들이 지원하는 OS Virtualization

user mode에서는 user process만 실행 될 수 있음 -> Kernel, HW part에 직접적인 접근 X, privileged instructions 실행 X

kernel mode에서는 OS만 실행, OS에 의해 privileged instructions 실행, HW에도 접근 O

* OS Virtualization : HW를 가상화 (하나의 physical computer에서 여러개의 가상 머신(logical computer)을 돌리기 위해)

                                 권한 ) virtual machine manager > 각 가상 머신의 kernel > 각 프로세스



Privileged Instructions

A set of instructions that should be executed carefully

Direct I/O access

 E.g., IN/OUT instructions in IA-32



Accessing/manipulating system registers

 Control registers

 Interrupt service routine table



Memory state management

 Page table updates, page table pointers, TLB loads, etc



HLT instruction in IA-32



Executable in the kernel mode

May generate an exception if an application tries to run a privileged

instruction in user mode





Interrupt vs. Exception

: 좀전에 interrupt에 대해 다뤘었다. 그때 HW가 interrupt를 발생시킨다고 했었는데 끝에 SW interrupt도 있다고 하였다.

  이것이 바로 exception이다. SW interrupt보단 통상적으로 Exception이라고 말한다.

그러므로 interrupt는 그냥 HW interrupt라고 생각하자.



먼저 Exception에 대해 알아보자. 좀전에 "명령어 실행에 의해 발생하는 interrupt이다. 예를 들면 소프트웨어 오류(ex. 0으로 나누기), 인증되지 않은 데이터 접근, 시스템 서비스 요청 등이 있다." 라고 했었다.

그러므로 interrupt처럼 처리한다. 그리고 CPU가 명령어를 실행할 때 발생하므로 동기적이다.

또한 Exception은 Trap, fault 두 가지로 나눌 수 있다.



  • Trap: 응용 프로그램이 의도적으로 발생시키는 것이다. 그러므로 정상적인 동작이고 이것을 바로 시스템 콜이라고 한다.
  • Fault: 의도하지 않은 Exception이다. 때문에 비장상적인 동작이다. 주로 에러나 잘못된 접근이다.

최신 OS의 사용자 모드에서 커널 모드로의 전환은 interrupt나 exception을 통해 수행됨.



Exception (= Software interrupt)

Generated by executing instructions

 Software error (e.g., division by zero), unauthorized access of data, request for

operating system service, …

Synchronous

 Happens when CPU executes an instruction

Trap(expected, intended) or fault(unexpected)

Handled like interrupts

C.f., interrupt (= Hardware interrupt)

Generated by hardware devices

Occurs asynchronously (at any time)

Modern OSes are interrupt(including exception)-driven

The transition from user mode to kernel mode is done via interrupt or

Exception



Transition from User to Kernel Mode

By interrupt

Asynchronous

E.g., Timer

 In the kernel mode, OS set a timer to generate an interrupt after some time period

(privileged instruction)

 In the user mode, an application process keeps using the CPU

 The timer generates a timer interrupt when the timer expires

» Switched to the kernel mode

 The OS can make a decision on the process

-> Timer(I/O device의 하나)를 이용해 시간이 만료되면 interrupt를 발생시켜 주로 cpu scheduling을 위해 사용된다. Interrupt를 통해 user mode에서 kernel mode로 전환.

-> User mode에서 kernel modecpu가 전환되면, OScpu에 다음 프로세스를 지정해줄 수 있다?

-> Program: Storage에만 있어 동작하지 않는 상태로 있음 <-> Process: memory에 올라와서 실행될 수 있음



Transition from User to Kernel Mode

By system call

Synchronous



System Calls

Programming interface to the services provided by the OS

Typically written in a high-level language (C/C++)

Mostly accessed by programs via a high-level Application Programming

Interface (API) rather than direct system call use  : 보통 API를 통해 system call을 호출

Most common APIs

Win32 API for Windows variants

POSIX API for POSIX-based systems

 Virtually include all versions of UNIX, Linux, and Mac OSX

Java API for the Java virtual machine (JVM)



A View of Operating System Services

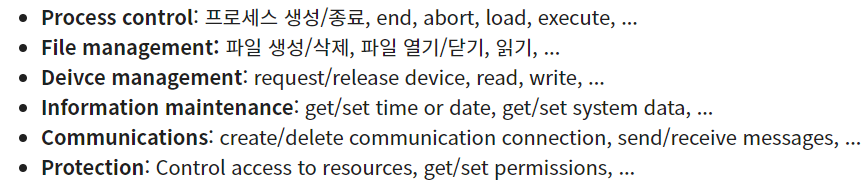

Types of System Calls

Type of System Call

Process control

create process, terminate process

end, abort

load, execute

get process attributes, set process attributes

wait for time

wait event, signal event

allocate and free memory

dump memory if error

debugger for determining bugs, single step execution

locks for managing access to shared data between processes

Types of System Calls

File management

create file, delete file

open, close file

read, write, reposition

get and set file attributes

Device management

request device, release device

read, write, reposition

get device attributes, set device attributes

logically attach or detach devices



Types of System Calls

Information maintenance

get time or date, set time or date

get system data, set system data

get and set process, file, or device attributes

Communications

create, delete communication connection

send, receive messages (message passing model)

create and gain access to memory regions (shared memory model)

transfer status information

attach and detach remote devices







Types of System Calls

Protection

Control access to resources

Get and set permissions

Allow and deny user access



Example of System Calls

System call sequence to copy the contents of one to another file

Windows and UNIX System Calls

Standard C Library Example

직접 시스템 콜 사용 X, 보통 high-level의 API를 통해 접근함

C program invoking printf() library call, which calls write() system call

내부적으로 write()라는 system call이 불러짐

Standard C library = System call Interface



System Call Implementation

Typically, each system call is associated

with an unique number (system call

number)

System-call interface maintains a table

indexed according to these numbers

- system call 구현에 대한 설명

: system call table이 존재하고, 이 테이블이 각 system call들의 루틴의 주소값을 가지고 있음

: 요구하는 시스템 콜의 위치를 반환받아 OS가 찾을 수 있음



The system call interface invokes the

intended system call in OS kernel and

returns status of the system call and any

return values

The caller need know nothing about how the system call is implemented

Just needs to obey API and understand what OS will do for system call

Most details of OS interface are hidden from programmer by API

: API가 디테일한 것을 다 커버쳐줘서, API 사용법만 알면 된다.



System Call Parameter Passing

Often, more information (i.e., parameters) is required than simply the

identity of desired system call

Exact type and amount of information vary according to OS and system call



Three general methods used to pass parameters to the OS

(OS에 매개변수를 전달하는데 사용되는 세가지 일반적인 방법)



1) Simplest approach: pass the parameters in registers

: 레지스터로 parameter 값들을 넘겨주는 방법 (system call호출시, OS가 레지스터에 저장된 값을 꺼내 사용)

 However, in some cases, there may be more parameters than registers

: 레지스터 개수는 한정적이므로, general하게 쓰기는 어려움



2) Parameters are stored in a block (or table) in memory, and the address of

the block is passed as a parameter in a register (메모리 공간 할당(블락)을 받고, 필요한 파라미터를 다 저장 후, 블락의 주소값을 register에 넘겨줌)

 This approach is taken by Linux and Solaris

: 주로 linux에서 사용



3) Parameters are pushed onto the stack by the user program and popped

off the stack by the operating system

: 각 process마다의 stack area에 필요한 parameter들을 push해두면, system call 호출시 OS가 그 stack를 pop up해서 parameter 얻음.

Block and stack methods do not limit the number or length of parameters

being passed



Parameter Passing via Memory Block
